System

• Working Range 300′ (100m) line of sight
• Audio Frequency Response 20Hz-15kHz
• T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu
• Dynamic Range >105 dB A-weighted >90 dB
• Tone Key Frequency 32.768 kHz
• A3 & EU-8000 components interchangeable

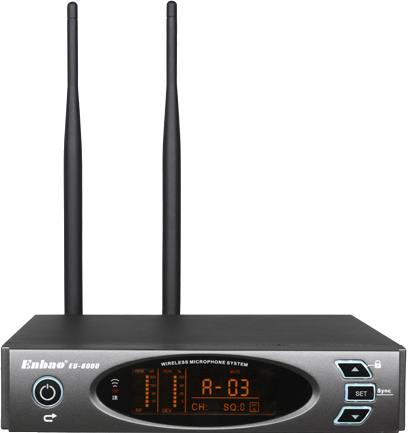

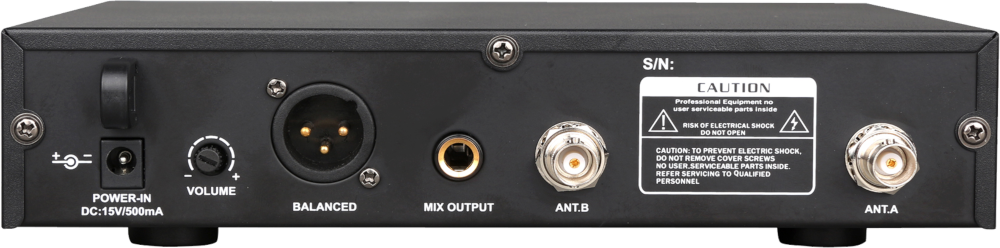

EU-8000 Receiver

• Audio Output Level Unbalanced +9 dBu / Balanced +14 dBu
• Audio Output Impedance  810 Ohms / Balanced 810 Ohms
• Sensitivity Unbalanced  -100 dBm / 30 dB sinad
• Image Rejection >50 dB
• Operating Voltage 15V
• Dimensions (LxWxH) 215x215x45(mm)
• Weight 0.95KG

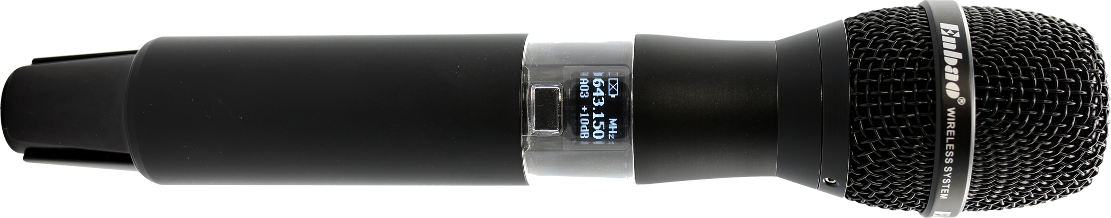

EU-8000 Handheld Transmitter

• Microphone Element Dynamic
• Input Gain Range 20 dB
• RF Power 10 mw
• Power Requirements Two AA (LR6) alkaline batteries
• Battery Life Up to 15 hours
• Dimensions 36 x 245(mm)
• Weight 0.28KG

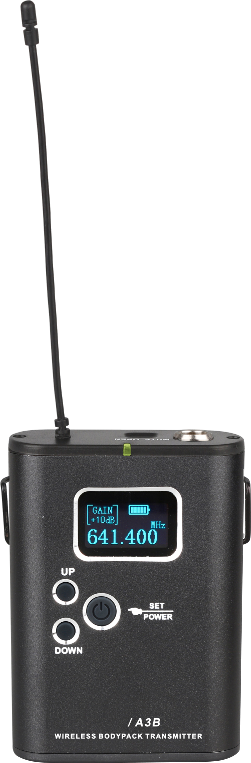

EU-8000 Belt Pack Transmitter

• Input Connector Mini-XLR(P3)
• Input Impedance 1 M
• Input Gain Range 38 dB
• RF Power 10 mw
• Power Requirements Two AA (LR6) alkaline batteries
• Battery Life Up to 15 hours
• Dimensions 110x65x22(mm)
• Weight 0.11KG
