Enbao A3 Series Radio Microphone System

System

  • Working Range 300′ (100m) line of sight
  • Audio Frequency Response 20Hz-15kHz
  • T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu
  • Dynamic Range >105 dB A-weighted >90 dB
  • Tone Key Frequency 32.768 kHz
  • TX & RX can be given ID name
  • A3 & EU-8000 components interchangeable

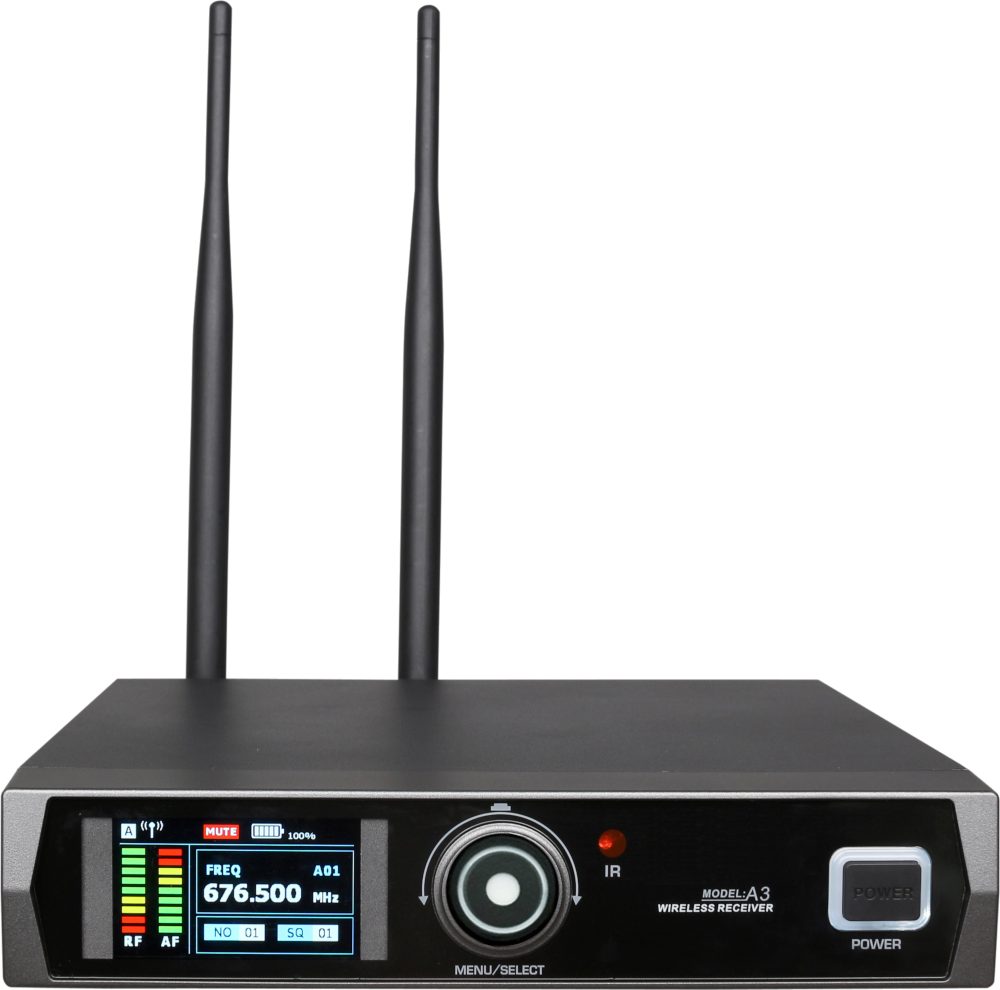

A3 Receiver

  • Audio Output Level Unbalanced +9 dBu / Balanced +14 dBu
  • Audio Output Impedance  810 Ohms / Balanced 810 Ohms
  • Sensitivity Unbalanced  -100 dBm / 30 dB sinad
  • Image Rejection >50 dB
  • Operating Voltage 15V
  • Dimensions (LxWxH) 215x215x45(mm)
  • Weight 0.95KG

A3H Handheld Transmitter

  • Microphone Element Dynamic
  • Input Gain Range 20 dB
  • RF Power 10 mw
  • Power Requirements Two AA (LR6) alkaline batteries
  • Battery Life Up to 15 hours
  • Dimensions 36 x 245(mm)
  • Weight 0.28KG

A3B Belt Pack Transmitter

  • Input Connector Mini-XLR(P3)
  • Input Impedance 1 M
  • Input Gain Range 38 dB
  • RF Power 10 mw
  • Power Requirements Two AA (LR6) alkaline batteries
  • Battery Life Up to 15 hours
  • Dimensions 110x65x22(mm)
  • Weight 0.11KG

A3 Rear
