Hz Audio

Hz Audio was founded in 1989 and specialises in speakers systems for entertainment

L4 Column

  • passive 160watt Column
  • 160 Hz – 18Khz
  • 8 ohm
  • 4 x 4.5″ drivers
  • coverage 80°x 30°
  • sensitivity 92 dB (1 W / 1 m)
  • SPL Continuous 116dB
  • SPL max 122dB
  • 524x150x210 (HxWxD)
  • 6.5kg

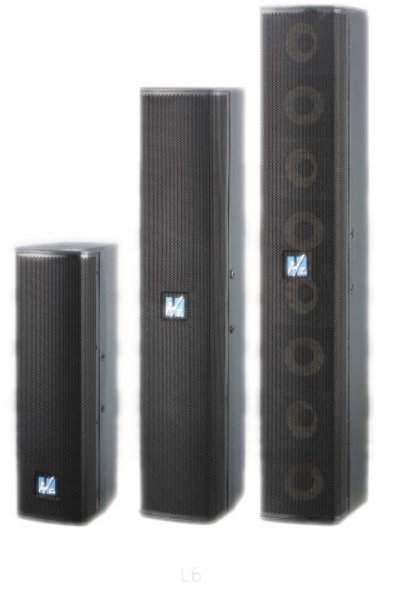

L6 Column

  • passive 240watt Column
  • 130 Hz – 20Khz
  • 12 ohm
  • 6 x 4.5″ drivers
  • coverage 80°x 30°
  • sensitivity 96 dB (1 W / 1 m)
  • SPL Continuous 120dB
  • SPL max 126dB
  • 774x150x210 (HxWxD)
  • 12kg

SL-15 + PA315

Designed to pair with L6
PA315 can drive 2x L6 & an aditional SL-15 passive

  • Active Subwoffer 96khz DSP/Amp from Powersoft
  •  4 Ch at 400watt/8Ω
  • 1x 15″ drive
  • 40 Hz – 2KHz
  • 480x518x550 (HxWxD)
  • 38kg

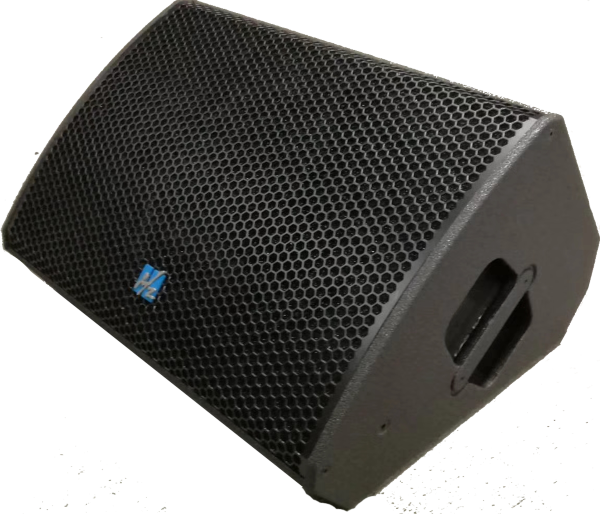

CA-1X

Same driver as CA-1F

  • passive 2-way 500watt
  • 1x 15” + 3″ Coaxial
  • 60hz – 19Khz
  • Impedence 8ohms
  • coverage 50°x 70° (HxV)
  • sensitivity 99 dB (1 W / 1 m)
  • SPL Continuous 126dB
  • max SPL 132dB
  • 660x440x385 (WxHxD)
  • 22kg

CA-1F

Same driver as CA-1X

  • passive 2-way 500watt
  • 1x 15” + 3″ Coaxial
  • 60hz – 19Khz
  • Impedence 8ohms
  • coverage 70°x 50° (HxV)
  • sensitivity 99 dB (1 W / 1 m)
  • SPL Continuous 126dB
  • max SPL 132dB
  • 600x500x300 (WxHxD)
  • 23kg

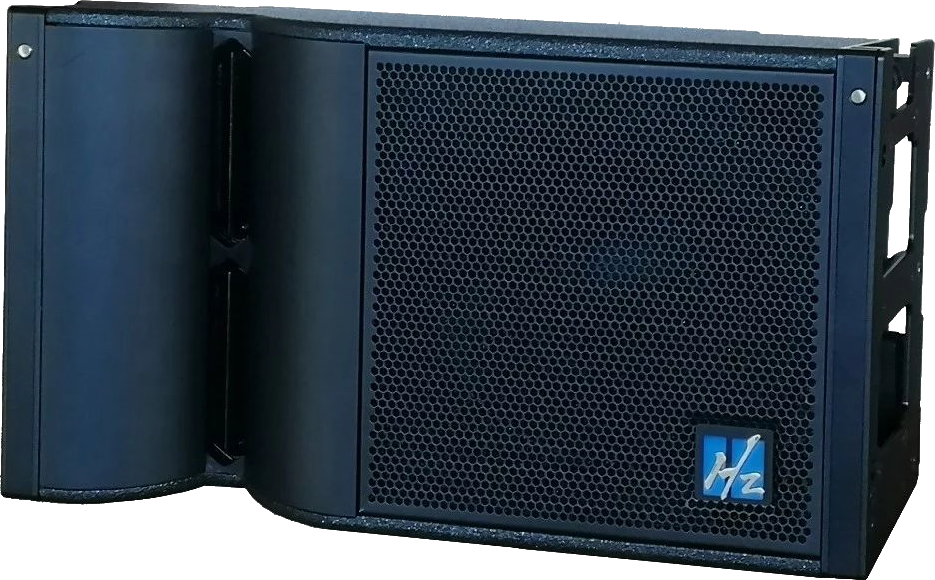

CL-1

  • passive 2-way 450watt
  • 1x 10” + 2x44mm
  • 80hz – 18Khz
  • Impedence 8ohms
  • coverage 100°x 10° (HxV)
  • sensitivity 103 dB (1 W / 1 m)
  • SPL Continuous 129dB
  • max SPL 135dB
  • 526x302x160 (WxHxD)
  • 16kg

CS-1

Designed to pair with CL-1 Can drive 2x CL-1

  • Active Subwoofer
  • 96Khz DSP Module
  • Powersoft Amplifier 2000+400+400 watts at 8Ω
  • 1200watt
  • 1x 18”
  • 30hz – 800hz
  • Impedence 8ohms
  • sensitivity 101 dB (1 W / 1 m)
  • SPL Continuous 129dB
  • max SPL 135dB
  • 574x805x640 (WxHxD)
  • 52kg

TC Series (Front Port)

TC-06

  • 6″+1″ Speaker Differential horn
  • 120 watt 8Ω
  • Freq Res 70hz-20Khz
  • Horizontal Coverage Far 50º Near 10 40
  • Vertical +20º to -3
  • sensitivity 92 dB (1 W / 1 m)
  • Continuous SPL 114dB
  • max SPL 120B
  • 200x400x200 (WxHxD)
  • 7.5kg
  • 15mm Birch Ply

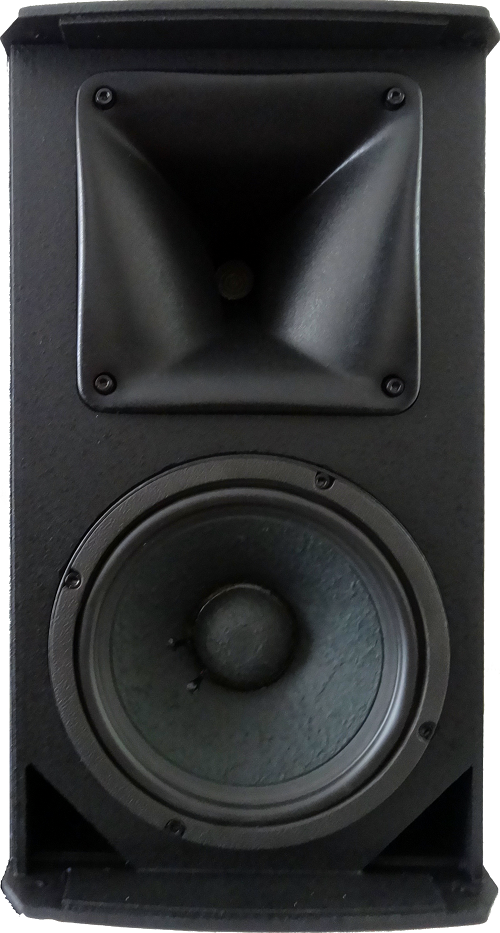

TC-08

  • 8″+1″ Speaker Differential horn
  • 150 watt 8Ω
  • Freq Res 65hz-21Khz
  • Horizontal Coverage Far 50º Near 10 40
  • Vertical +20º to -3
  • sensitivity 95 dB (1 W / 1 m)
  • Continuous SPL 117dB
  • max SPL 123B
  • 260x460x285 (WxHxD)
  • 12kg
  • 15mm Birch Ply

TC-10

  • 10″+1″ Speaker
  • 250 watt 8Ω
  • Freq Res 65hz-19Khz
  • Coverage 0º
  • sensitivity 96 dB (1 W / 1 m)
  • Continuous SPL 119dB
  • max SPL 125dB
  • 350x510x320 (WxHxD)
  • 17.4kg
  • 15mm Birch Ply

TC-12

  • 12″+1″ Speaker
  • 350 watt 8Ω
  • Freq Res 70hz-19Khz
  • Coverage 0º
  • sensitivity 97 dB (1 W / 1 m)
  • Continuous SPL 124dB
  • max SPL 130dB
  • 400x595x360 (WxHxD)
  • 26.5kg
  • 15mm Birch Ply

TC-15

  • 15″+1″ Speaker
  • 500 watt 8Ω
  • Freq Res 50hz-18Khz
  • Coverage 0º
  • sensitivity 98 dB (1 W / 1 m)
  • Continuous SPL 125dB
  • max SPL 131dB
  • 428x711x380 (WxHxD)
  • 38kg
  • 15mm Birch Ply

TB series has rear port for better LF based on wall reflections

TB-10

  • 10″+1″ Speaker
  • 250 watt 8Ω
  • Freq Res 65hz-19Khz
  • Coverage 0º
  • sensitivity 96 dB (1 W / 1 m)
  • Continuous SPL 119dB
  • max SPL 125dB
  • 300x510x355 (WxHxD)
  • 17.6kg
  • 15mm Birch Ply

TB Series (Rear Port)

TB-12

  • 12″+1″ Speaker
  • 350 watt 8Ω
  • Freq Res 55hz-19Khz
  • Coverage 0º
  • sensitivity 97 dB (1 W / 1 m)
  • Continuous SPL 124dB
  • max SPL 130dB
  • 349x590x400 (WxHxD)
  • 25.5kg
  • 15mm Birch Ply

Unique cabinet design to allow close mounting in corners,

CM Series

CM-4

  • 8″+1″ Speaker
  • 150 watt 8Ω
  • Freq Res 65hz-21Khz
  • Coverage 0º
  • sensitivity 95 dB (1 W / 1 m)
  • Continuous SPL 117dB
  • max SPL 123dB
  • 340x433x190 (WxHxD)
  • 11kg
  • Birch Ply

CW-121

  • Single 12”
  • 400watt
  • Freq Res 38Hz – 500Hz
  • Nom Impedance 8Ω
  • Sensitivity 94 dB (1 W / 1 m)
  • Continous SPL 120dB
  • Max SPL 126dB
  •  400x450x448 (WxHxD)
  • 28kg
  • Birch Ply

SL-15

  • Single 15”
  • 1000watt AES
  • Freq Res 40Hz – 2KHz
  • Nom Impedance 8Ω
  • Sensitivity 96 dB (1 W / 1 m)
  • Continous SPL 126dB
  • Max SPL 132dB
  •  518x480x550 (WxHxD)
  • 38kg
  • Birch Ply

SUB-118

  • Single 18”
  • 800watt AES
  • Freq Res 35Hz – 1KHz
  • Nom Impedance 8Ω
  • Sensitivity 100 dB (1 W / 1 m)
  • Continous SPL 129dB
  • Max SPL 135dB
  •  640x530x700 (WxHxD)
  • 43kg
  • 18mm Birch Ply

LS-2

  • Dual 18”
  • 4000watt AES
  • Freq Res 25Hz – 1KHz
  • Nom Impedance 4Ω
  • Sensitivity 102 dB (1 W / 1 m)
  • Continous SPL 135dB
  • Max SPL 141dB
  •  1166x548x825 (WxHxD)
  • 90kg
  • 18mm Birch Ply
