Radio Microphone Systems

Robust reliable systems since 1997

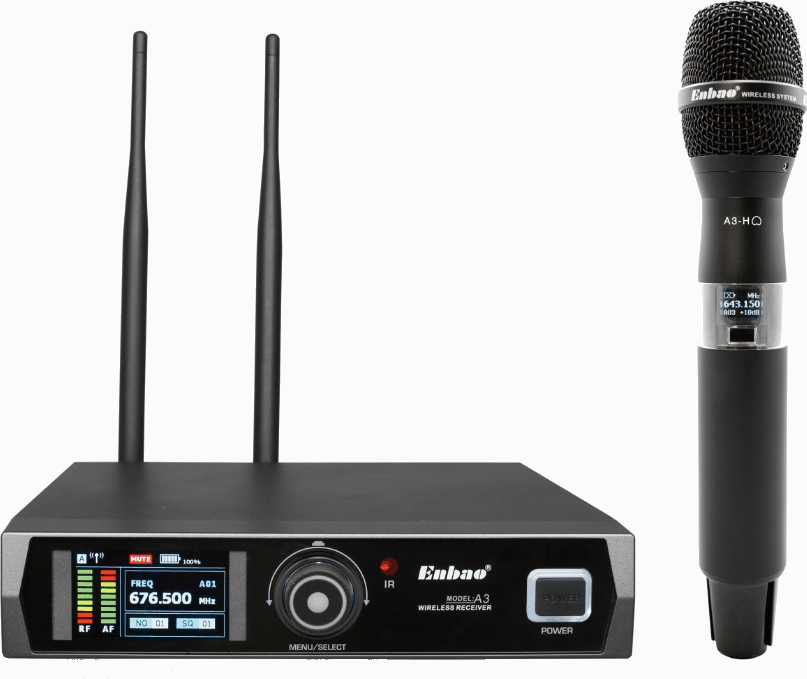

A3 Series

Hand Held System

  • Full color TFT display
  • Infrared frequency synchronisation
  • One button operation
  • Digital ID code, transmitter, battery level
  • Function Lock
  • Single & dual rack kit included

The A3 series professional system uses the leading FR6 AF dedicated chip set with world class RF dynamic compression and expander  circuit to ensure class leading quality and reliability.

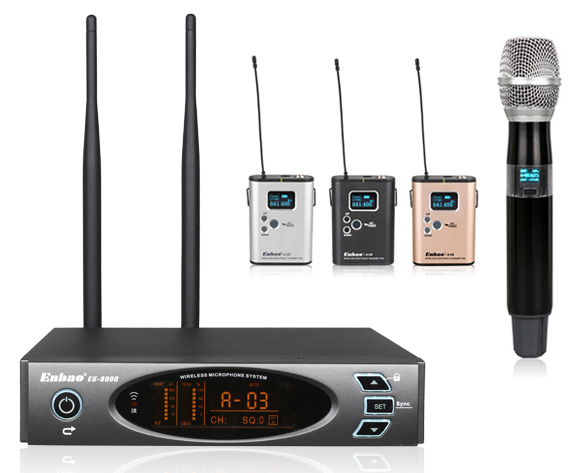

EU-8000 Series

The EU-8000 series professional system uses the leading FR6 AF dedicated chip set with world class RF dynamic compression and expander  circuit to ensure class leading quality and reliability.

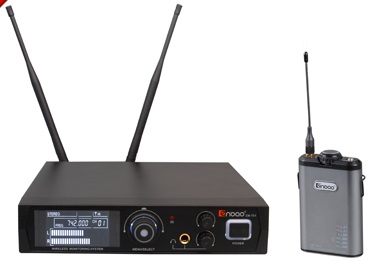

EM-01

Personal In Ear Monitor

  • 24 Bit digital audio
  • 2 Channels
  • One button operation
  • Balanced XLR Inputs
  • Single & dual rack kit included

CT-17

Headset

CT-16

Headset

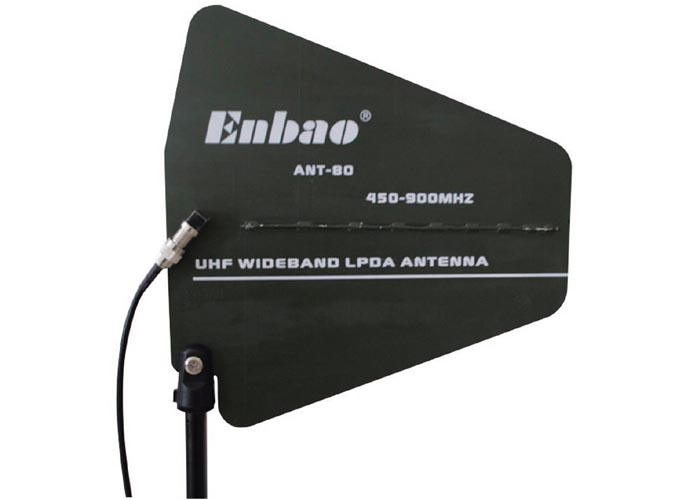

ANT-8008

Remote Antenna System

Q-F06

Unidirectional Headset

F-B06

Unidirectional Headset

CT-20

Ear set

G20

Condenser Capsule for HH

ANT-8008

Unidirectional Lapel

System Specification

A3 and EU-8000 are compatible with each other as they share the same electronics

System

 Audio Frequency Response 20hz – 15khz
THD <1% @ AF 1khz, RF 46dBu
Dynamic Range >105dB
Signal to Noise >90db
Tone Key Frequency 32.768khz

Reciever

Audio Output Level Unbalanced +9dBu / Balanced +14dBu
Audio Output Impedance Unbalanced 810Ω / Balanced 810Ω
RF Sensitivity -100dBm / 30dB sinad
Rejection >50dB
Operating Voltage 15V
Dimensions 215 x 215 x45 mm
Weight 0.95Kg

Hand Held Transmitter

Microphone Element Dynamic or Condenser
Input gain range 20dB
RF Power 10mw
Power Two AA alkaline batteries
Battery Life Up to 15 hours
Dimensions 35 x 245 mm
Weight 0.28kg

Belt Pack Transmitter

Input Connector Mini XLR P3
Input Impedance 1MΩ
Input gain range 38dB
RF Power 10mw
Power Two AA alkaline batteries
Battery Life Up to 15 hours
Dimensions 110 x 65 x 22 mm
Weight 0.11kg
