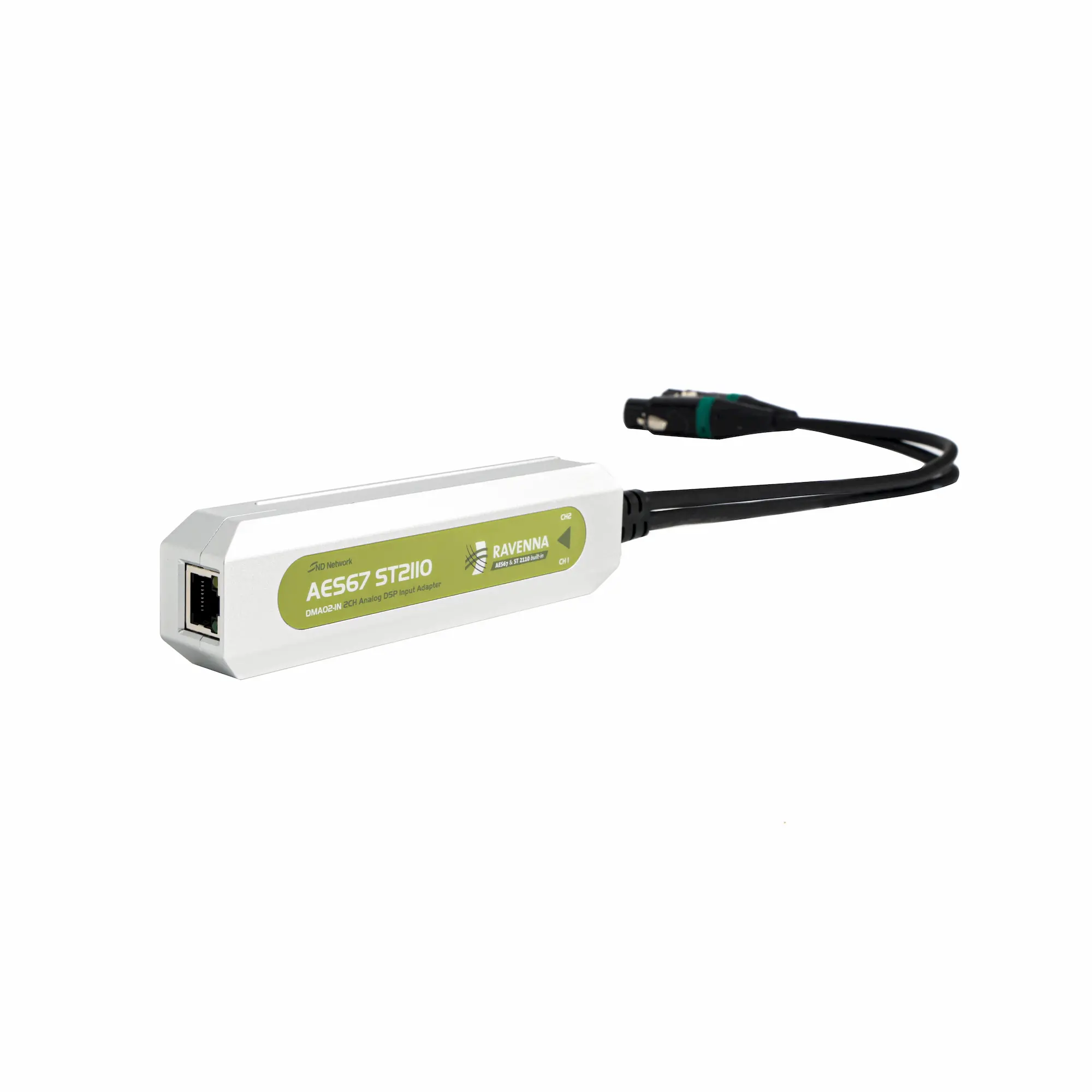

2-channel analog XLR balanced inputs and 2-channel AES67 network outputs.

Integrated 2 × 2 automatic mixing matrix.

Transmits SMPTE ST2110 & AES67 audio and device control signals using cost-effective Ethernet cables.

Delivers lossless, high-quality uncompressed network audio with ≤1ms network latency and ≤2ms processing delay.

DIGISYN LINK3 control software for easy expansion, device monitoring, network routing, and DSP configuration.

Supports PoE (Power over Ethernet), compliant with IEEE 802.3af power standard.

Advanced DSP functions: EQ, Delay, Compression, Limiting, FIR, et

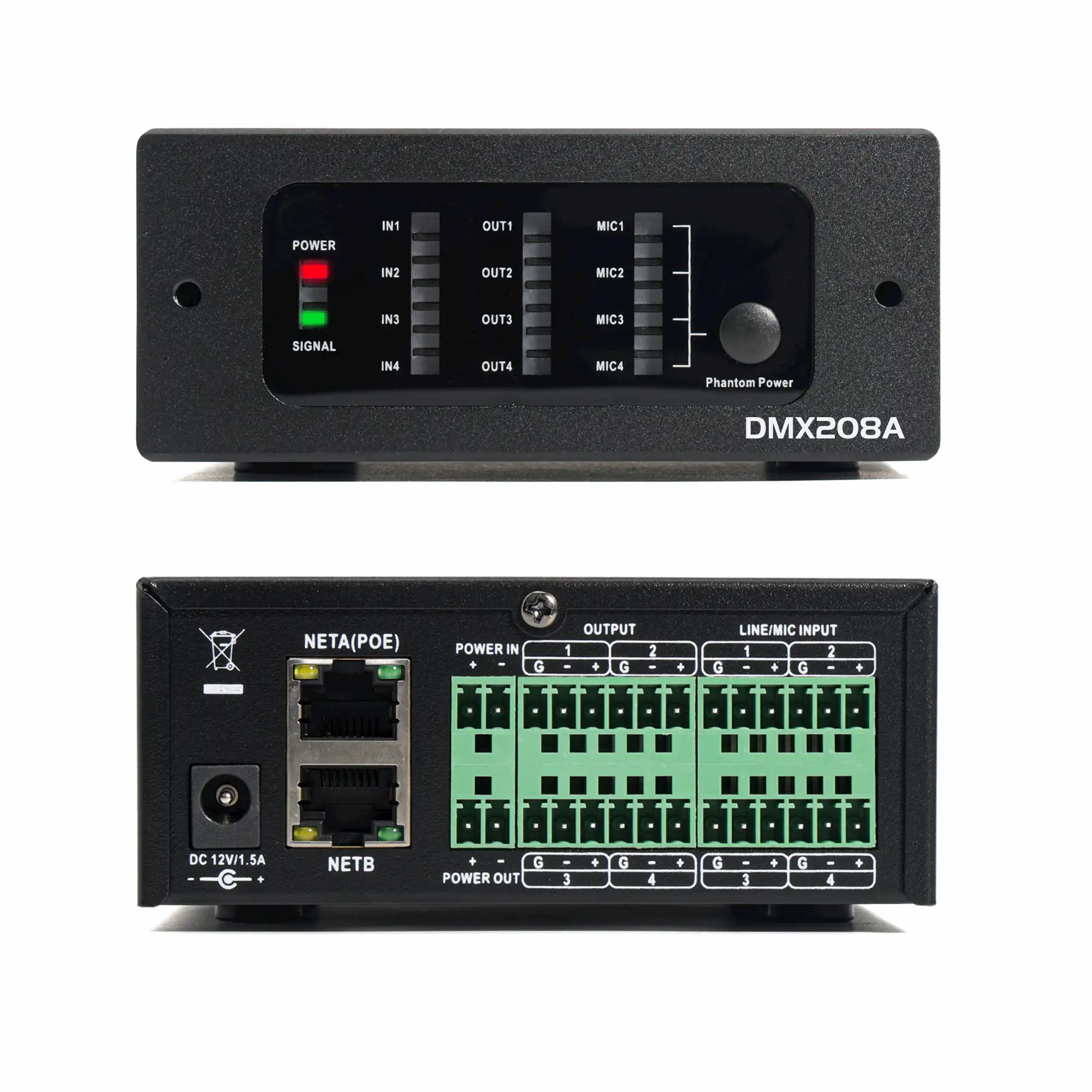

DMX208A is a network DSP audio matrix including 4 × 4 networked audio channels (DIGISYN LINK / AES67)

4 × 4 analog Phoenix terminal, input with 48V phantom power

Up to 8 × 8 auto mixer, supporting gain sharing and gating mixing

Sampling rates of 48kHz and 96kHz, with bit depths of 16, 24 and 32 bits

Provides powerful DSP functions (supports AEC, ANS, AGC, AFC and ANC) with support for OTA upgrades and splicing

PoE-af standard power supply 15W, also supports DC power input

Up to 4 × AEC processors (Will be updated in early 2026)

1/4U half-width, includes mounting hardware

Free DIGISYN LINK3 GUI Controller software for control, monitoring and ​configuration

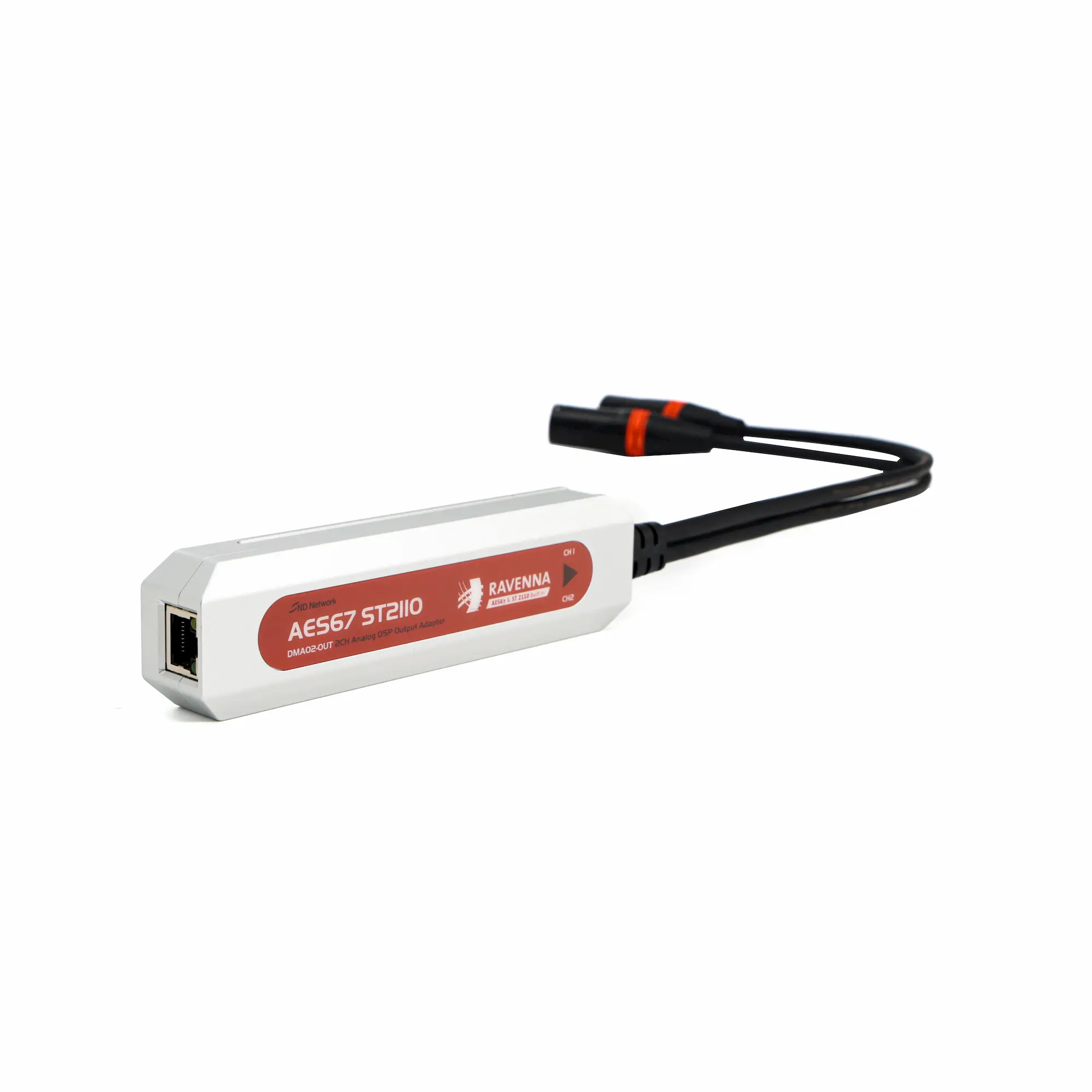

2-channel analog XLR balanced outputs and 2-channel AES67 network outputs.

Integrated 2 × 2 automatic mixing matrix.

Transmits SMPTE ST2110 & AES67 audio and device control signals using cost-effective Ethernet cables.

Delivers lossless, high-quality uncompressed network audio with ≤1ms network latency and ≤2ms processing delay.

DIGISYN LINK3 control software for easy expansion, device monitoring, network routing, and DSP configuration.

Supports PoE (Power over Ethernet), compliant with IEEE 802.3af power standard.

Advanced DSP functions: EQ, Delay, Compression, Limiting, FIR, et

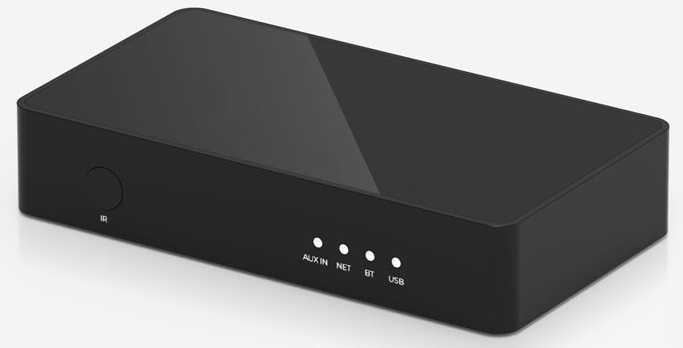

WiFi and Bluetooth 5.0 stereo preamplifier

Decoding Up to 24bit/192kHz

• - 2.4G WiFi &100M Lan & Bluetooth 5.0 Connectivity
• - Multiroom & Multizone working with multiple units connected
• - Airplay,Spotify Connect,DLNA, UPNP,Qplay supported
• - 24bit,192khz Decoding, Flac,Wav,Ape supported
• - SNR :91dB, THD 0.03%, Frequency:20Hz to 20kHz
• - Support BT & WiFi SSID name change by app
• - Free Android & iOS app and free update
• - Spotify,Deezer,Amazon Music, Internet Radio,Tidal,Qobuz,Napster,iHeartRadio available
• - Stream music from NAS,USB,Phone Storage
• - WiFi/Bluetooth/Line in/USB Music can be restream to any other unit in the system
• - Aux out x1, Aux in x1, USB X1, LAN X1, LED x1, Micro USB x1, IRx1
• - Remote controller included
• - Size: 116.2*64*22.6mm

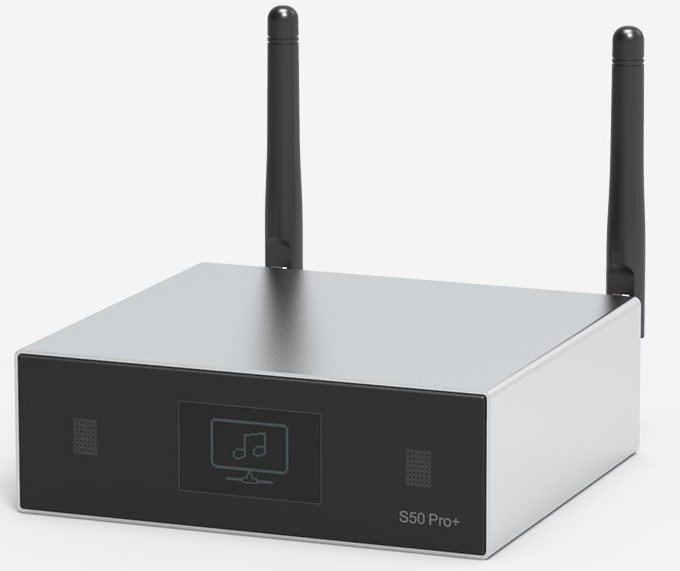

WiFi and Bluetooth 5.0 stereo preamplifier

ESS Sabre DAC upto 24bit 192Khz audio

• - 2.4G WiFi & 100M Lan & Aptx HD Bluetooth 5.0 Connectivity
• - OLED display panel for display info
• - Multiroom & Multizone working with multiple units connected
• - Airplay, Spotify Connect,DLNA, UPNP,Qplay supported
• - 24bit, 192khz Decoding, Flac,Wav,Ape supported
• - SNR :91dB, THD 0.03%, Frequency:20Hz to 20kHz
• - Free Android &i OS app and free update
• - Spotify, Deezer, Amazon Music, Internet Radio, Tidal, Qobuz, Napster, iHeartRadio available
• - Stream music from NAS,USB,Phone Storage
• - WiFi/Bluetooth/Line in/USB Music can be restream to any other unit in the system
• -Line out x1,Opt out x1, Coax out x1, Subwoofer out x1, Opt in x1, Line in x1, USB x1, LANx1, LED x1, IRx1, WiFi/Bluetooth External Antenna
• - Remote controller included
• - Size :120x113x37mm
