Audio DSP Processors
Audio DSP Processors

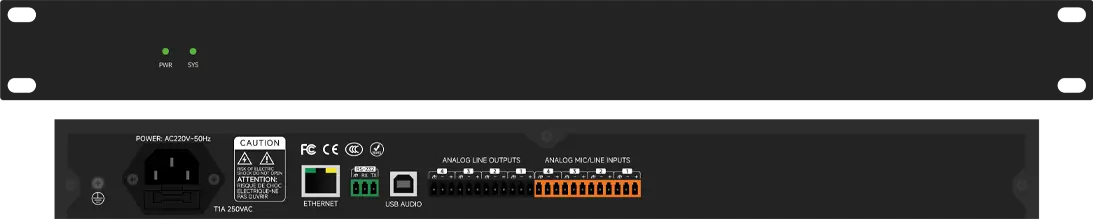

AV44
DSP Matrix Processor
- 4 Mic/Line to 4 Line inputs
- Fixed Architecture DSP

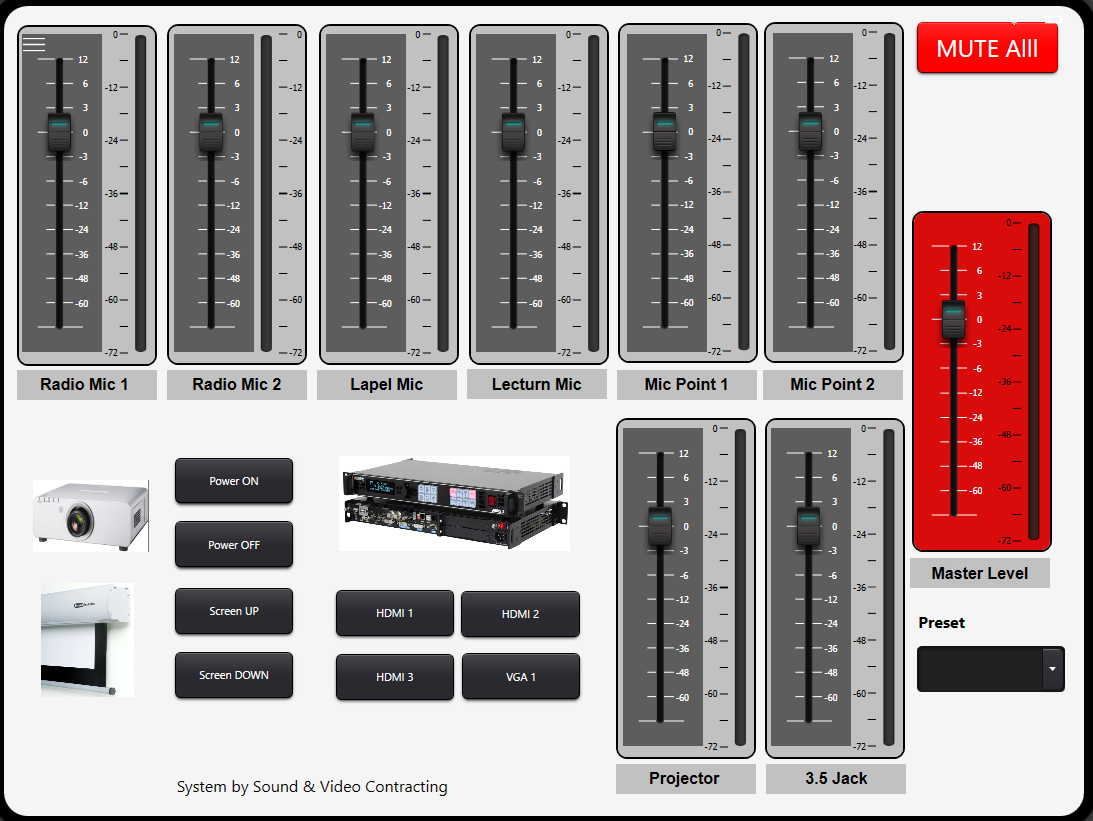

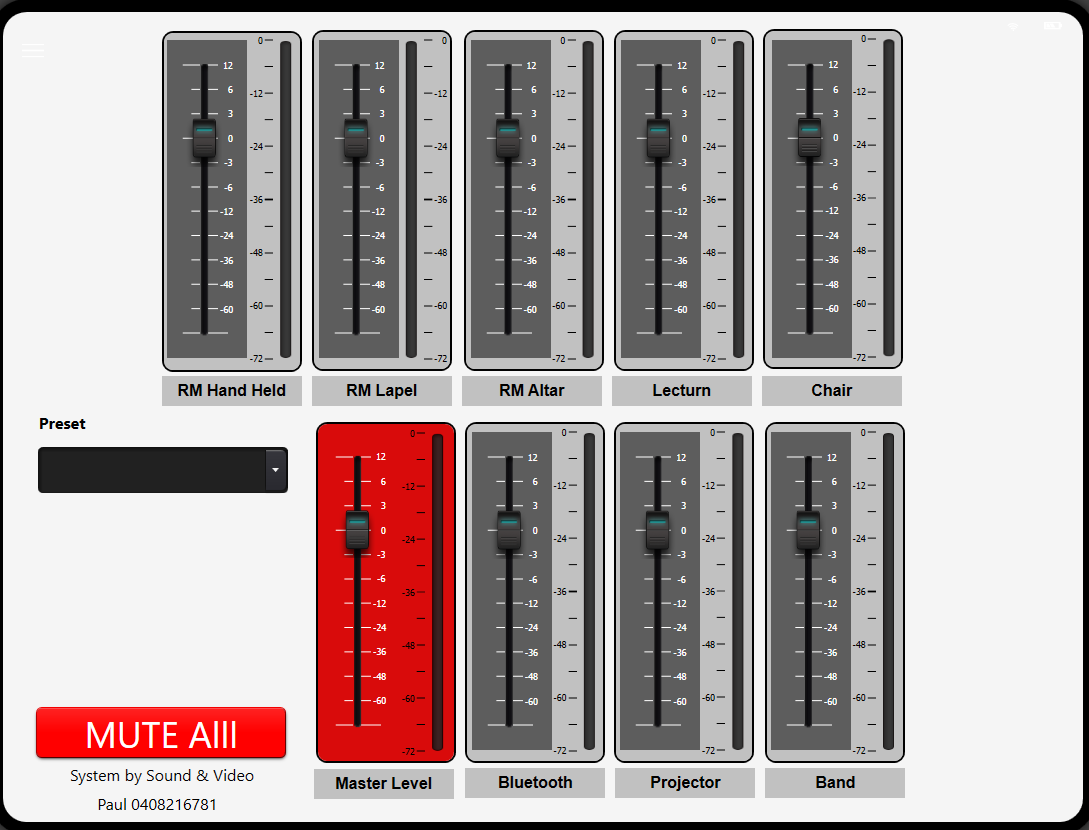

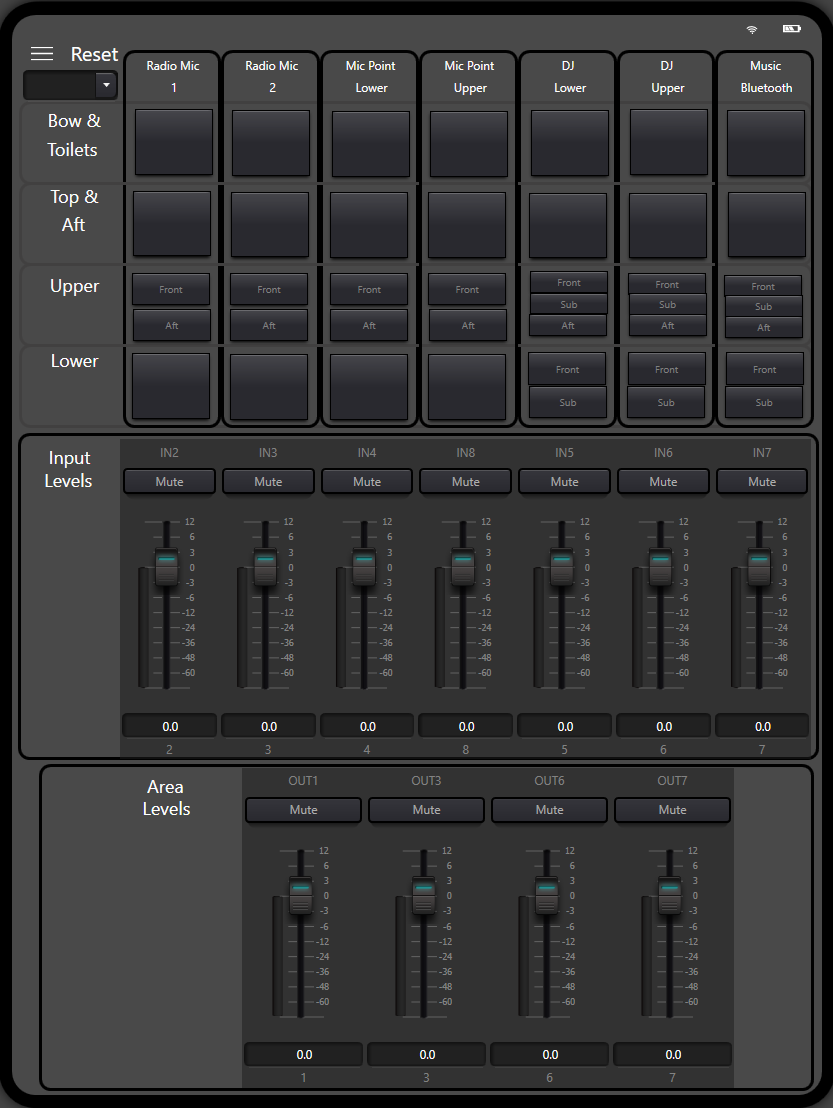

- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
AV44
DSP Matrix Processor
- 4 Mic/Line to 4 Line inputs
- Fixed Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
Frequency response | 20Hz - 20KHz +/- 0.5dB |
THD+N | <0.002% @+4dB |
Input Impedance balanced | 600Ω |
Signal to Noise Ratio | 66dB Mic 80dB Aux |
Samping | 48Khz |
Phantom Power | Yes |
Processor | ADI SHARC 21489 |
Sampling | 48k 24bit |
Max Input Level | -18dBu |
Input & Output dynamic range | 110dB |
Channel separation | 108dB |
System processing delay | <3ms |

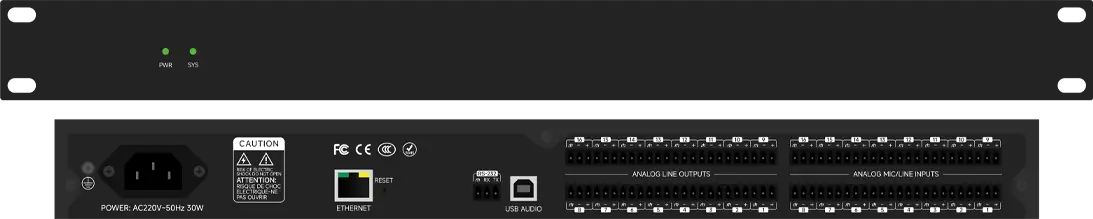

AV88 & AV1616
DSP Matrix Processor
- 8 or 16 Mic/Line to 8 or 16 Line inputs
- Fixed Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
AV88 & AV1616
DSP Matrix Processor
- 8 or 16 Mic/Line to 8 or 16 Line inputs
- Fixed Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
Frequency response | 20Hz - 20KHz +/- 0.5dB |
THD+N | <0.002% @+4dB |
Input Impedance balanced | 600Ω |
Signal to Noise Ratio | 66dB Mic 80dB Aux |
Samping | 48Khz |
Phantom Power | Yes |
Processor | ADI SHARC 21489 |
Sampling | 48k 24bit |
Max Input Level | -18dBu |
Input & Output dynamic range | 110dB |
Channel separation | 108dB |
System processing delay | <3ms |

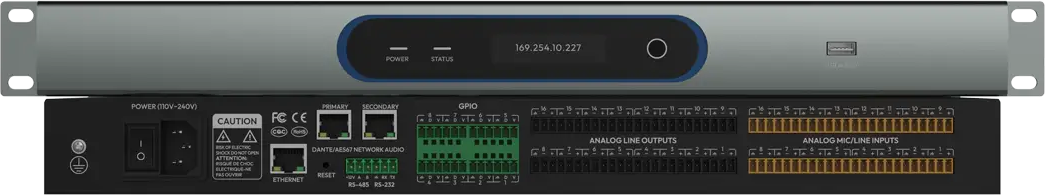

AVPOpen
DSP Matrix Processor
- 16 Mic/Line 16 Line inputs
- 32 x 32 Dante I/O
- Open Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
AVPOpen
DSP Matrix Processor
- 16 Mic/Line 16 Line inputs
- 32 x 32 Dante I/O
- Open Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
Frequency response | 20Hz - 20KHz +/- 0.5dB |
THD+N | <0.002% @+4dB |
Input Impedance balanced | 600Ω |
Signal to Noise Ratio | 66dB Mic 80dB Aux |
Samping | 48Khz |
Phantom Power | Yes |
Processor | ADI SHARC 21489 |
Sampling | 48k 24bit |
Max Input Level | -18dBu |
Input & Output dynamic range | 115dB |
Channel separation | 108dB |
System processing delay | <4ms |
